Air Circuit breakers

High Performance Air Circuit Breakers for Industrial Power Protection

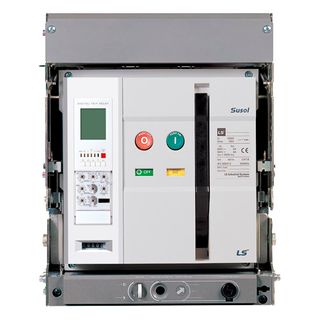

Ensuring the safety and stability of high-current electrical systems requires robust engineering and reliable hardware. At NAW Controls, we specialise in providing premium air circuit breaker solutions designed to handle the heavy demands of industrial and commercial power distribution. An air circuit breaker is an essential component for protecting electrical circuits from damage caused by overloads or short circuits, particularly in environments where the continuous current is exceptionally high. Our range is built to meet Australian standards, ensuring long-term durability and precision in the most demanding conditions.

When designing a switchboard or upgrading an existing facility, understanding what an air circuit breaker is and its role in your infrastructure is critical. Unlike standard units, these breakers use air as the arc extinguishing medium, making them ideal for low voltage applications up to 6300A. As a core part of our power distribution products, each air circuit breaker we supply offers high breaking capacity and advanced trip units to allow for precise coordination across your entire network. This level of control is vital for maintaining uptime and protecting expensive downstream machinery.

Our selection includes versatile options for every configuration, whether you require a fixed or withdrawable AC circuit breaker. For installations that require a more compact footprint for lower current applications, we also provide high-quality moulded case circuit breakers. Furthermore, for comprehensive safety against earth leakage and residual current, you can explore our residual current circuit breakers or our integrated residual current circuit breakers (RCBO) ranges. At NAW Controls, we prioritise technical excellence to ensure your project remains compliant and safe.

Choosing the right air circuit breakers is about more than just matching specifications. It is about ensuring the longevity of your electrical system. Our team is grounded in technical expertise, helping you select the correct AC circuit breaker for your specific fault level requirements. With NAW Controls, you gain access to a wholesaler that understands the Australian industrial landscape and provides the reliable components necessary to keep your operations running without interruption.

Frequently Asked Questions

What is an air circuit breaker and how does it work?

An air circuit breaker is a device used to provide overcurrent and short-circuit protection for high-current electrical circuits. It works by using compressed air or atmospheric pressure to extinguish the electrical arc created when the contacts open, ensuring the circuit is safely isolated during a fault condition.

What are the main applications for an AC circuit breaker?

A heavy-duty AC circuit breaker is primarily used in industrial plants, large commercial buildings, and power stations. These units act as the main incoming protection for switchboards, where they manage large power loads that exceed the capacity of standard residential or light commercial equipment.

How do air circuit breakers differ from MCCBs?

While both provide protection, air circuit breakers are generally used for much higher current ratings and offer more advanced adjustment features for selective coordination. They are often designed to be maintainable and can be fitted with various accessories to monitor the health of the electrical system.

How do I choose the right air circuit breaker for my project?

Selecting the correct unit involves evaluating the nominal current, the required breaking capacity in kiloamps (kA), and the physical installation requirements, such as whether a fixed or draw-out type is needed. Our team can assist in matching these technical specifications to your specific switchgear design.
